Screen Printing Inks Information Guide Version 3.7

Introduction to Nazdar Inks

Nearly 100 Years of Inks & Coatings Innovation

Focused on Your Screen, Digital, & Flexographic Printing Ink Needs

The Nazdar® company manufacturers the most comprehensive selection of UV, UV-LED, water-base and solvent-based screen printing inks, flexographic inks, and wide-format digital inks obtainable from a single source. Nazdar® inks are primarily used by printers in the Point of Purchase (POP), Banner, Container, Industrial, Metal, Ad Specialty, Nameplate / Membrane Switch, Roll Label, Sign and Textile decorating markets. Nazdar® digital printing inks can be used in a wide selection of digital inkjet printing presses like VUTEk™, NUR™, Scitex™, Mutoh™, Océ™, Mimaki™ and Gandi™, Hewlett-Packard, Epson®, Roland™, Agfa™, Teckwin™ and other notable wide-format digital printers. Whether printing indoor or outdoor applications on paper, plastics, textiles, metal, glass, or containers and packaging, there's a Nazdar® ink that's right for every job.

Nazdar accepts responsibility as a corporate citizen and acknowledges our obligation to help improve the quality of the environment, society, and community of which we are a part. We are committed to formulate all our products with environmental advantages in mind, including more energy efficient UV curing inks that are V-Pyrol® free and heavy metal free solvent based inks designed to have lower VOCs and easy reclamation. Nazdar also provides extensive regulatory compliance training to industry associations and printers. Nazdar® Shawnee's QMS have received ISO 9001:2015 certification.

Nazdar On-Line

www.Nazdar.com

The continuing evolution of communications technology has brought faster access to product information, service and support for on-line users everywhere, including the screen printing industry. Nazdar was one of the first screen printing ink manufacturers to have a presence on the World Wide Web and continues to remain at the forefront of on-line services by offering a wealth of information and educational interactive opportunities to our web site's visitors.

The Nazdar On-Line web site is a screen printer's gateway to the latest news and technical information concerning Nazdar's products and services. It's also the best way to keep up with what's happening locally by visiting the special Nazdar branch location web sites within Nazdar On-Line. That's just the beginning. Nazdar On-Line also provides dates and locations for national and regional trade shows and educational seminars, and links to other important on-line screen printing resources. Nazdar on-Line provides an area where screen printers can download valuable software to assist in color calibration and color matching. Direct e-mail links to Nazdar departments such as customer service, technical service, and regulatory compliance provide fast response to any questions concerning Nazdar products.

If you've visited the Nazdar On-Line site in the past, stop by again; we're continually updating and improving our programming and information. We're sure you'll find it both educational and informative.

UV Screen Inks Reference Chart

UV Flexiform 1500

• Indoor/Outdoor
• Vauum or Thermal Forming
• 3-Dimensional POP Applications
• Superior Flexibility

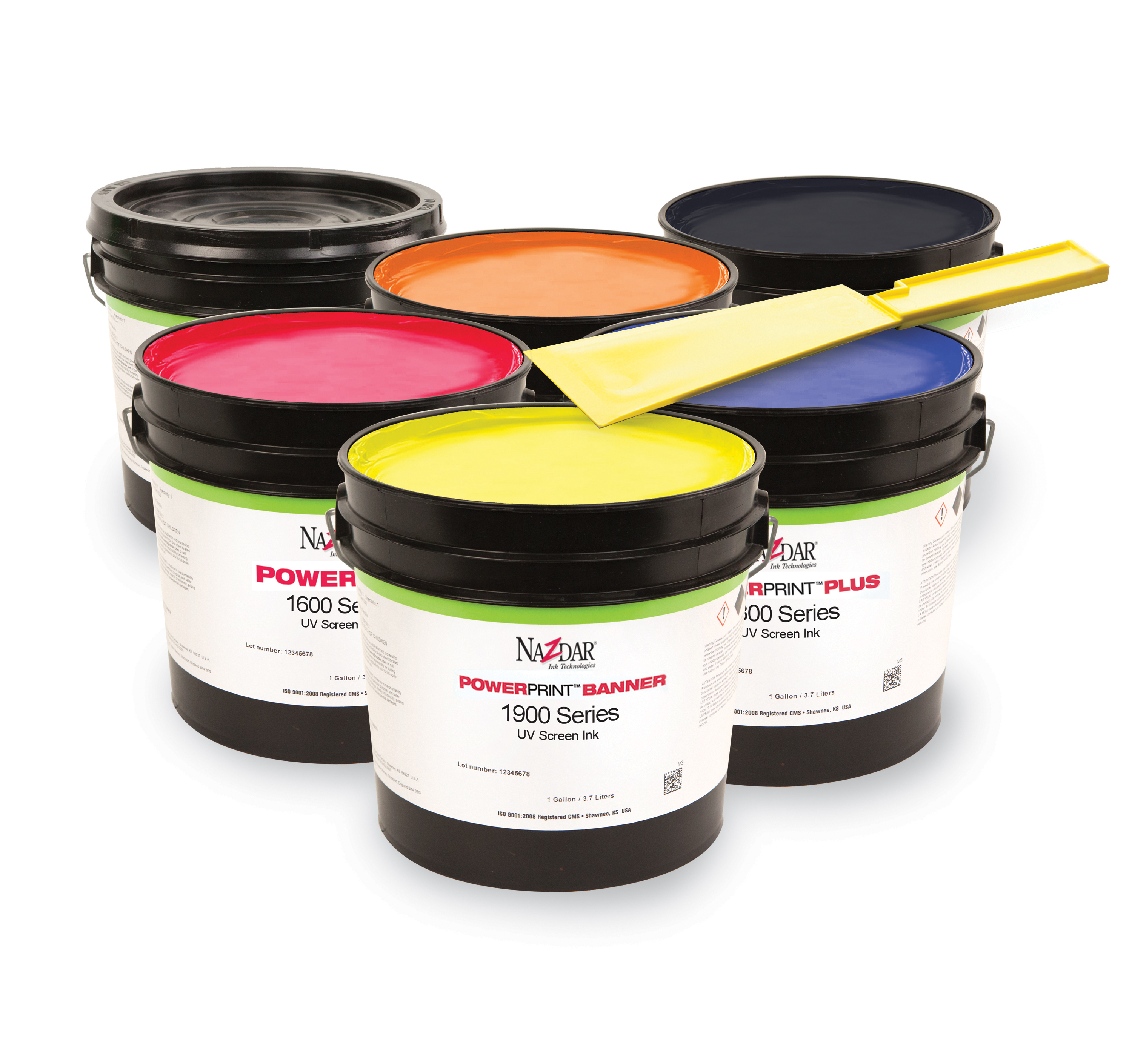

PowerPrint® 1600

• Indoor/Outdoor - 2 year
• Multi-Purpose POP Applications
• High Speed, Low UV output
• Hard ink surface, Low Odor
• High Block Resistance

PowerPrint® Plus 1800

• Indoor/Outdoor - 2 year
• Wide Range of Substrates
• Corrugated Plastics
• High Speed, Low UV output
• High Block Resistance

PowerPrint® Banner 1900

• Indoor/Outdoor - 2 year
• Low UV output, Good Flexibility
• High Block Resistance

EC3600 Economy Process Colors

• Indoor/Outdoor Short Term - 6 mos
• Economical Vinyl Banner Ink
• Halftone Availability Only
• Not InterPrintable w/3900 Series

4000 Series

• Indoor/Outdoor - 2 year
• Excellent Acrylic Adhesion
• Heat Bend Applications
• Suitable for Vacuum Forming
• Wide Substrate Range Adhesion

4200 Series

• Indoor and short-term outdoor
• Optimizes cure speed, adhesion range, ink film flexibility, print speed, and image quality

LED 2600 Series

• UV/LED Cure
• Indoor/Outdoor - 2 year
• Point of sale/point of purchase graphic applications on a wide range of substrates

UV Screen Inks Reference Chart

2400 UV/LED Membrane Overlay

• For 2nd Surface Printing
• Indoor/Short Term Outdoor

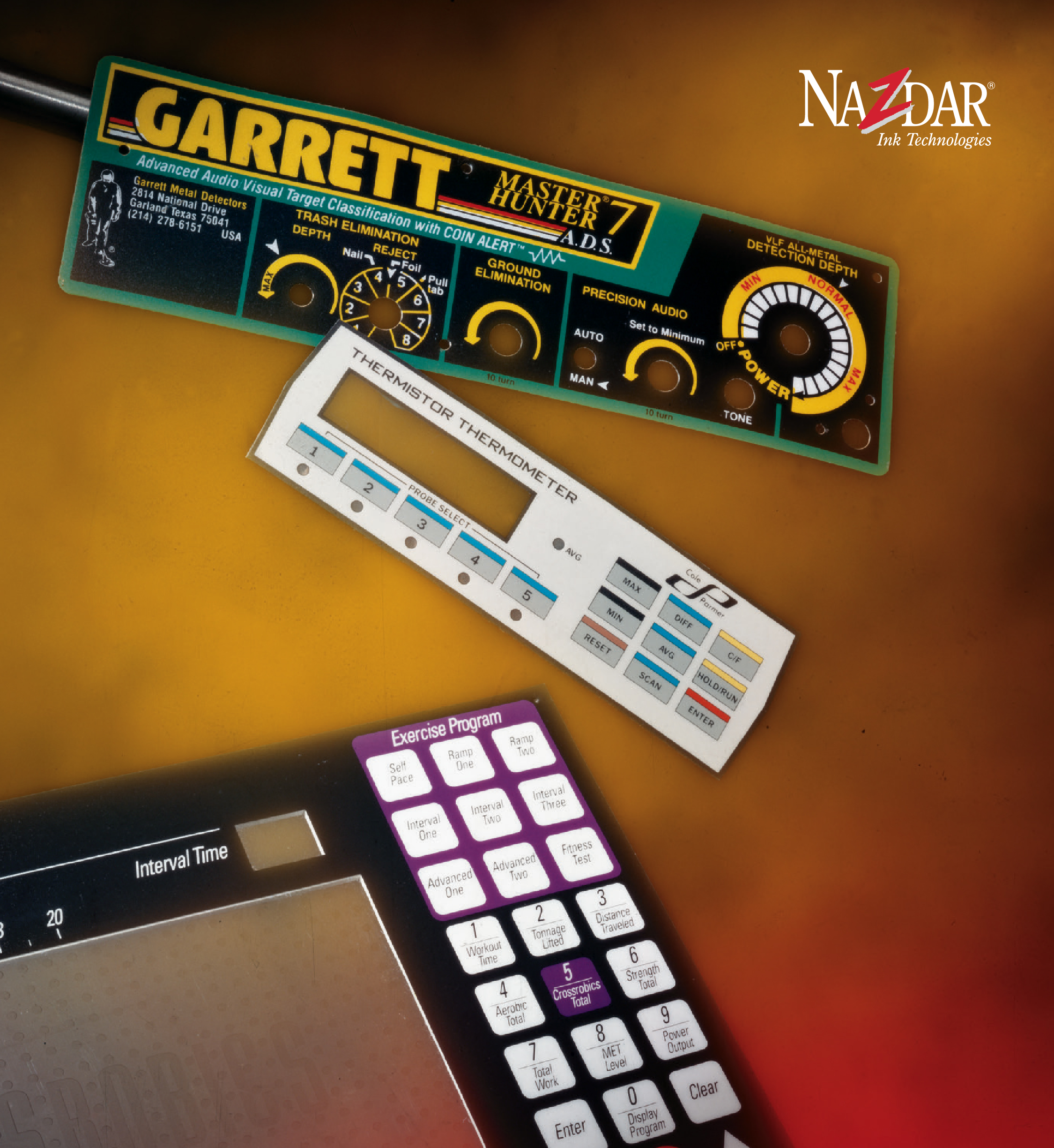

3400 UV Nameplate

• Indoor/Outdoor
• Nameplate/Membrane Overlays
• Compatible w/Acrylic Laminating Adhesives
• 1st & 2nd Surface Printing
• Excellent Opacity & Flexiblity

NSC UV Clears

• Textured Clears
• Window Clears
• Lens Clears

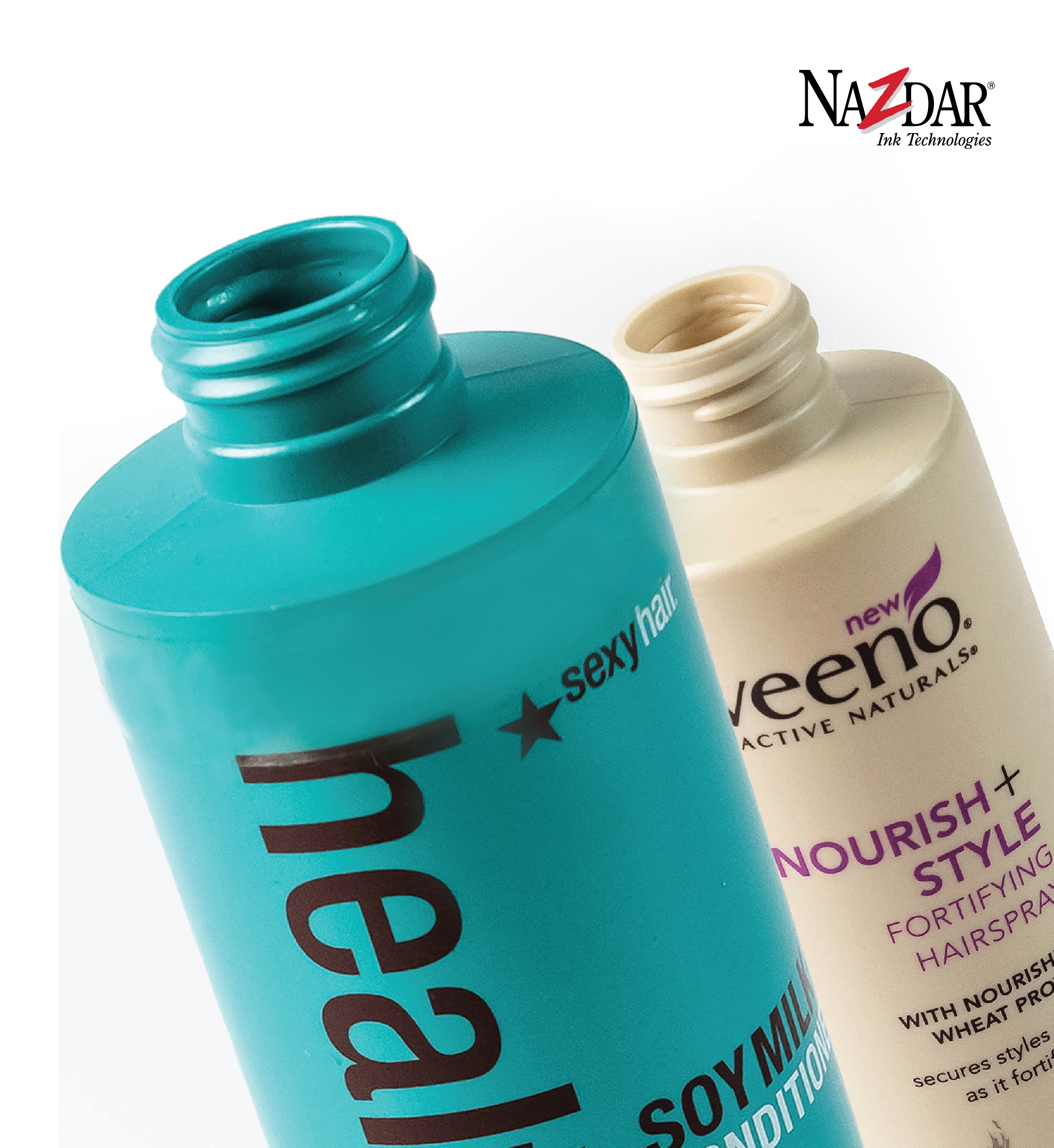

2300 UV/LED Container

• Indoor Container & Industrial
• Glass & Plastics
• 1st & 2nd Surface Printing
• UV & UV/LED Curing

4300 UV Container

• Indoor Container
• HDPE and other plastics
• High Chemical & Water Resistance
• Fast Curing

3500 Durable Graphic

• Indoor/Outdoor Fleet Graphics
• Premium Vinyl Film Applications
• Superior Flexibility & Elongation
• Excellent Weatherability & Chemical Resistance
• Suitable for Thermal Die-Cutting & Premasks

3600 Decal

• Indoor/Outdoor
• High Performance Decal Ink
• Excellent Exterior Durability & Chemical Resistance
• Suitable for Thermal Die-Cut

Solvent Screen Inks Reference Chart

9700 All Purpose

• Indoor/Outdoor
• Wide Range of Substrates
• High Gloss, Extremely Flexible
• Suitable for Vacuum Forming

7900 Corogloss

• Indoor/Outdoor Short Term
• Treated Corrugated Plastics
• POP & Signage Applications

7200 Lacquer

• Indoor Only
• POP Displays & Book Covers
• Clean, Bright Colors
• Fast Drying

59000 Enamel Plus Gloss

• Indoor/Outdoor
• Hard-to-Adhere-to-Substrates
• Signs & Displays

Versacon® Classic 5100

• single Part Container Ink

VF Flat Vinyl

• Indoor Only
• Excellent Printability
• Rigid and Flexible Vinyls
• Fast Drying and Non-Blocking
• Can Be Heat Sealed

S2 System-2 Gloss Vinyl

• Indoor/Outdoor
• Optimum Performance Decal
• High Gloss, Fast Drying
• Great Chemical Resistance

4700 Water-Based

• Indoor/Outdoor
• Water-Based
• Wide Range of Substrates
• Good Weather Resistance
• Flexible for Vacuum Forming

Solvent Screen Inks Reference Chart

5500 Flat Poster

• Indoor Only
• Flat Finish
• Short Term POP Displays
• Poster & Serigraph Applications

6100 Fast Dry Enamel

• Indoor Only
• Hard-to-Adhere-to Surfaces
• Fiber Drum & Treated Polyethylene
• Excellent Resistance to Soaps & Detergents

8400 CVIM Decorating

• Indoor/Outdoor Short Term
• Designed for Polyesters and In-Mold Decorating Applications
• Suitable Replacement for 9600

8800 Color Vue Membrane

• Indoor/Outdoor - Specifically for:
  • Automotive, Membrane Overlay, & Appliance Decorating
  • Transparent Lens-like Clarity

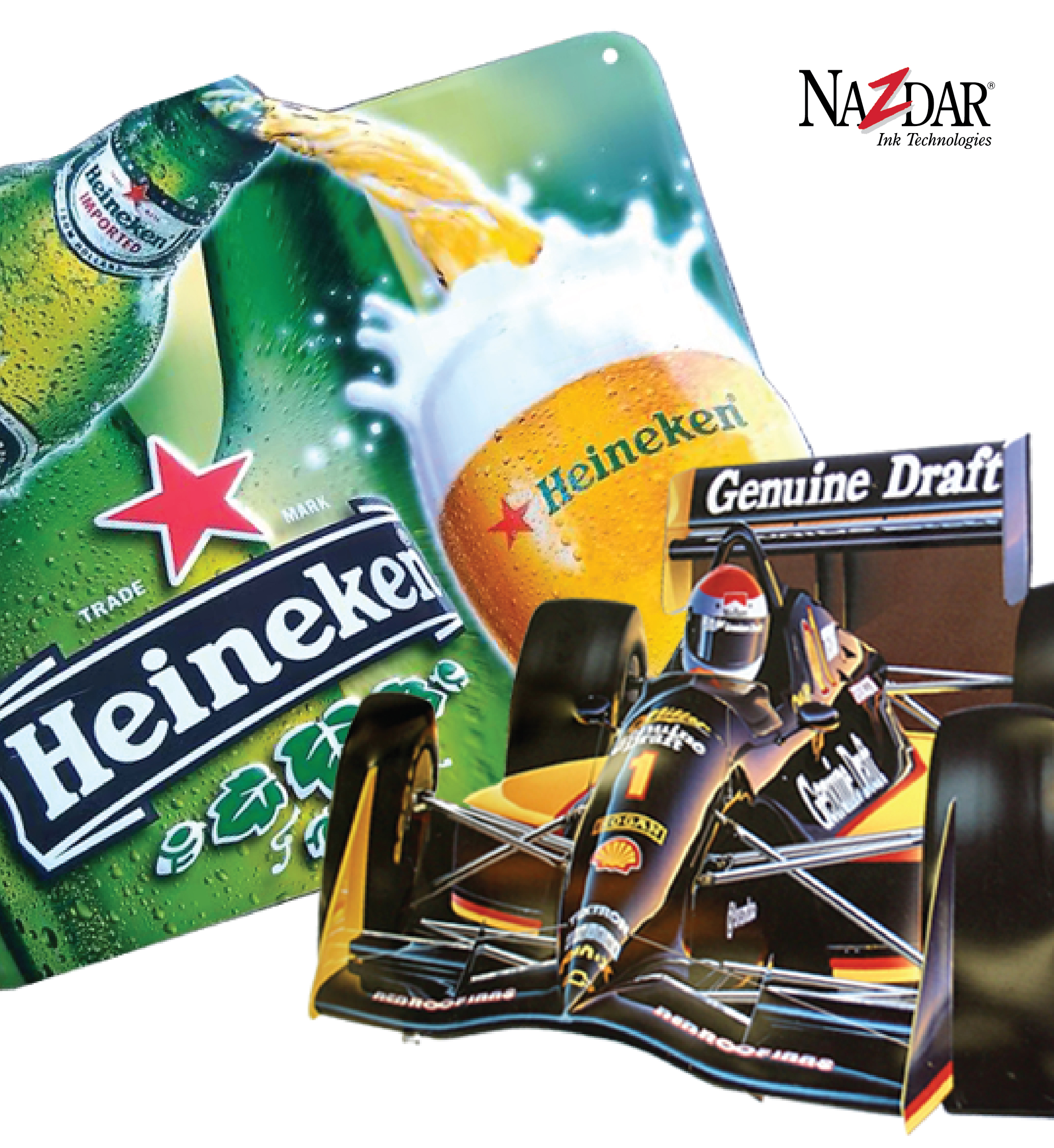

8900 Super Set Thermo Set

• Indoor/Outdoor
• High Solids Metal Ink
• Excellent Resistance to Solvents, Chemicals, Humidity, & Abrasion

ADE Epoxy

• 2-Part Catalyst System
• Hard-to-Adhere-to Surfaces
• Electronic & Industrial Applications
• Outstanding Solvent, Chemical, & Abrasian Resistance

GV Gloss Vinyl

• Indoor/Outdoor
• High Performance Vinyl Ink
• Extremely Flexible
• Suitable for Vacuum Forming

Nazdar's Conventional and UV-Curable

Screen Ink Simulations for the Pantone® Matching System

Product Information

Nazdar's simulations for the Pantone Matching System® are user-friendly systems that allow Nazdar customers to simulate any of the Pantone® Plus Series with the most popular conventional and ultra violet curable inks.

Nazdar's screen printed color reproductions of the Pantone® Color Formula Guide are simulations of the original offset produced colors. While other screen printing ink manufacturers offer various formula guides for simulating Pantone® colors, Nazdar's method of color reproduction has proven to be more consistently accurate.

Benefits of Nazdar's PMS Formulas

Nazdar formulas are unique for two reasons:

• Most formulas are computer matched with the latest X-Rite® ink formulation software under stringent quality control measures to ensure the most accurate simulations possible.
• Higher pigment concentration means more opacity or color density, allowing stronger color possibilities, easier matching and reproduction of the Pantone® shades tailored for the screen printing market.

Higher pigment (greater density) base colors allow easy color adjustment from increasing the color depth to decreasing color value without significantly affecting the color formula.

Because the Nazdar base matching colors contain higher densities, the screen ink simulations for the Pantone Matching System® provide much more versatility in color control. This makes it easier to match colors on a variety of substrates with varying ink deposits caused by mesh, squeegee, print mechanics, etc.

Base Colors

Nazdar's screen ink simulations for the Pantone Matching System® consists of high intensity base component colors including:

Screen Inks Color Matching Recommendations

All color formulas in the Nazdar formula guides use deposit consistencies resulting from controlled print conditions including squeegee, mesh (conventional ink: 260 monofilament, UV ink

Variables inherent to screen printing often require color adjustment in duplication of the proper color shade or density:

• Color too dark - reduce density by adding Mixing Clear until the proper color is achieved.
• Color too light - reduce the amount of Mixing Clear in the formula until the proper color is achieved.

Since all colors vary significantly in weight, the use of an accurate scale is required for reliable color matching. Scales are available that will weigh in ounces or parts of ounces up to a maximum of one quart range. There are also scales that will measure from ounces to fifty pounds or more.

The use of a knife (spatula) for transferring small amounts of ink from one container to another is much more effective and accurate than pouring or dipping. These knives are available in a variety of sizes, allowing you to mix quantities ranging from a few ounces to five gallons. Wax-free containers ranging from disposable cups to 6-12 ounce plastic containers with lids are recommended for mixing small amounts of color. Power or mechanical mixing is recommended for good reproducable color matching.

Technical Assistance

All color matching formulas included in the Pantone® Color Formula Guide are available in Nazdar's color simulation formula guides for the Pantone Matching System® for conventional and UV inks.

For further assistance, contact Nazdar's technical service department at: 1-866-340-3579 or email

Nazdar offers fast, accurate custom color matching services. Contact your nearest Nazdar distributor for further information.

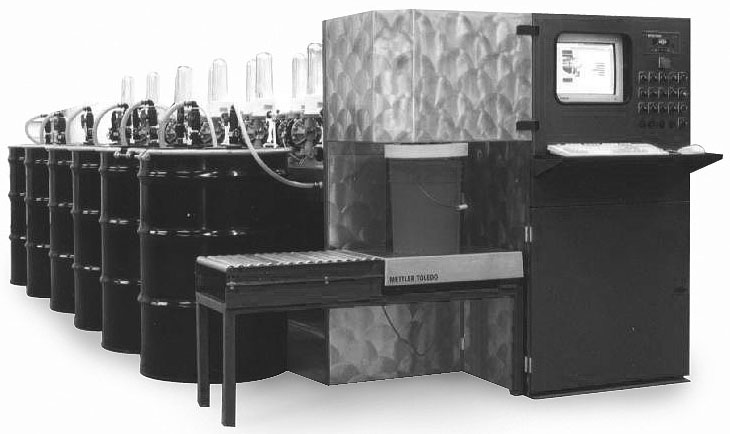

Software for Color Formulation and Matching

This symbol designates inks which are part of Nazdar's ColorStar® Ink Formula Management System. ColorStar is a powerful productivity tool developed specifically for screen printing shops, offering a list of features to make your business more efficient - and profitable. The ColorStar package includes Pantone® formula matches for the most popular Nazdar UV and conventional inks and comes complete with software, and an easy to follow manual.

• Increases your productivity
• Allows you to produce the correct Pantone® color match time after time.
• Helps reduce set up time and costs with repeat print jobs by allowing you to store the print parameters along with each formula.
• Guarantees the right quantity of ink mixed for each print job by allowing you to perform accurate calculations before you begin.
• Allows you to accurately cost-out a job before giving a quote.
• Compatible with any PC in the Microsoft Windows environment.

All trademarks used herein are property of Pantone, Inc.

Nazdar's color mixing ink formulations produce only simulations of Pantone® Colors in this color reproduction method due to differences in ink film, opacity and pigment selection. The pigment selection used in blending inks may cause metamer-ism. Pantone, Inc. assumes no responsibility for formula accuracy. All trademarks used herein are either the property of Nazdar, Pantone, Inc. or other companies. Portions© Pantone, Inc., 1963, 1991.

Pantone® is Pantone, Inc's check-standard trademark for color. Portions© Pantone, Inc., 1963, 1991.

Halftone & Color Process Screen Printing

Halftone Printing

Halftone images are commonly printed as single color, two color duotone and full four color process color printing. Process color printing is a method to reproduce full color images through the use of four colors, Cyan, Magenta, Yellow, and Black with halftone dot patterns. All process color images are printed as some form of a halftone.

Halftone Inks

Screen Printing halftone inks are different from the standard screen printing ink colors. There are three characteristics that distinguish halftone inks; color, density, and viscosity. These characteristics will typically apply to each type of ink system: water-based, solvent-based, and UV curing.

Color

Nazdar has been manufacturing halftone inks over the course of several generations of halftone color specifications. Therefore not all Nazdar halftone screen printing inks are made to meet the same printing specifications. Depending upon the market requirements, there will be Nazdar halftone inks that meet ISO 12647-2 specifications for G7 printing, and there are halftone inks that are designed to meet SWOP proofing specifications.

Density

The ability of a transparent ink to absorb specific wavelengths of reflected light is called density and is measured with a densitometer. The measurement of density of a process color ink is considered an excellent way to measure and control actual ink deposit.

Most Nazdar Screen Inks are made in a standard density set that will result in commercial graphic arts density values on the intended substrate for that specific ink series.

Most Nazdar ink series will also have a dense set of halftone inks which are intended to give a printer the flexibility to adjust the density of an ink for various substrates and ink deposit levels.

Viscosity

Halftones are specified by LPI or line per inch of dots. Common LPI counts for screen printing can range from 35 LPI to 150 LPI. This wide variation of halftone LPI count requires a very different performance level from the inks. Generally speaking, the lower LPI counts use a thicker or heavier viscosity ink, while LPI counts above 85 LPI require a less viscous ink that will flow out more and facilitate higher printing speeds.

• Nazdar halftone inks are built in three different viscosity levels:
• HT designated inks are heavy body inks for low LPI counts.
• MTR medium tack rheology inks are for mid LPI counts of 55 - 85 LPI.
• LTR low tack rheology inks are for high LPI counts of 85 LPI and higher.

T7 Halftone Inks: are designed to print to the targeted values of the seven colors (CMYK & RGB) as stated in ISO 12647-2 specification for process color reproduction. These inks can meet the ISO targeted numbers and achieve a neutral 100x3 black when printed on a substrate with a white value similar to a #1 Grade Coated Paper. Best results are achieved when printing these inks at the following solid ink density values and printing sequence:

Estimating Screen Ink Coverage & Costs

Technical information provided for Nazdar Inks always references ink coverage within a range of expected results, such as 2,700 to 3,500 square feet per gallon. This wide range considers all the variables a particular ink series may experience when printed using various applications, mesh, equipment, substrate, and ink viscosity.

If your facility prints using three or four different ink/substrate combinations, these coverage figures are too broad for you to accurately determine ink coverage and cost.

To more accurately estimate ink coverage, cost and quantity required for a given job, Nazdar offers the following formula:

1. Weigh the ink in the container after it has been mixed and thinned, just prior to printing. Record this weight.
   • 1 Quart of 1652 Super Opaque Black = 4168.5 grams per gallon


2. Print one sq. ft. (12˝ x 12˝ or some division of this) of solid ink coverage onto the substrate most often used for this particular ink. Use the ideal press set-up to achieve the most even ink deposit. The more sheets printed, the more accurate the results. In this example, 122 sheets were printed. Return as much of the ink as possible back into the container and weigh the container. Subtract this weight from the first weight to yield the weight of the ink used to print 122 sheets.
   • 122 square feet coverage of 1652 on gloss Quintessence 80# cover stock used 136 grams of ink 4168.5 grams per gallon ÷ 136 grams ink used = 30.7 x 122 square feet = 3745.4 sq. ft. gallon of 1652 on Gloss Coated Quintessence Paper using 380.34 mesh with a 70/90/70 durometer at 24 n/cm.

   Divide the cost of one gallon of this ink by the coverage figure in order to achieve the actual cost per square foot of this particular ink on this particular stock.
   • $130.00 per gallon ÷ 3745.4 sq. ft. gallon = .029 or $ .029 per square foot.


3. To put these figures into action, estimate the amount of 1652 ink required and the cost to produce 5,000 posters where the actual print area is 14˝ x 22˝ on a 20˝ x 26˝ poster. Since the print area is not solid, you may "eyeball" the artwork to guess the approximate coverage of ink as a percentage. This is also common for halftone and process color images.
   • 14" x 22" = 308 square inches x 60% coverage (an estimate) = 185 square inches ink
   • 185 sq. inches ÷ 144 (12" x 12") = 1.28 square feet of ink
   • 1.28 square feet of ink x 5,000 sheets = 6,400 square feet total ink coverage
   • 6,400 square feet ÷ 3745.4 square feet per gallon = 1.71 gallons of 1652
   • Total ink cost without waste is 1.71 x $107.70 = $184.17

Many of these calculations have been included as part of Nazdar's ColorStar® software program, enabling printers to quickly and easily determine costs and coverages on any particular job. See page 57 for more information about the many time - and money - saving benefits of ColorStar.

Nazdar Screen Printing Inks

The following symbols are used throughout this catalog to provide quick visual references for certain important product features:

These symbols represent the type of chemistry used in formulating specific ink products:

This symbol designates inks which are part of Nazdar's ColorStar® Ink Formula Management System. ColorStar is used to produce accurate PANTONE® color matches, cost-out jobs, store custom ink formulations, and much more. See the ColorStar section on page 75 for more information.

Though we have endeavored to make this Guide as comprehensive as possible, we cannot address every conceivable printing situation a screen printer might encounter. If you have questions concerning issues not covered in this Guide, we encourage you to contact our Technical Service department at 866-340-3579, or e-mail to [email protected].

Nazdar's color mixing ink formulations produce only simulations of PANTONE® Colors in this color reproduction method due to differences in ink film, opacity and pigment selection. The pigment selection used in blending inks may cause metamerism. Pantone, Inc. assumes no responsibility for formula accuracy. All trademarks used herein are either the property of Nazdar, Pantone, Inc., or other companies. Portions© Pantone, Inc., 2003.

Pantone® is Pantone, Inc's check-standard trademark for color. Portions© Pantone, Inc., 2003.

Guidelines for Ink Usage:

Nazdar® stands behind the quality of this product. Nazdar® cannot, however, guarantee the finished results because Nazdar® exercises no control over individual operating conditions and production procedures. While technical information and advice on the use of this product is provided in good faith, the User bears sole responsibility for selecting the appropriate product for their end-use requirements. Users are also responsible for testing to determine that our product will perform as expected during the printed item's entire life-cycle from printing, post-print processing, and shipment to end-use. This product has been specially formulated for screen printing, and it has not been tested for application by any other method. Any liability associated with the use of this product is limited to the value of the product purchased from Nazdar®.

Based on information from our raw material suppliers, these products are formulated to contain less than 0.06% lead. If exact heavy metal content is required, independent lab analysis is recommended.

Point of Purchase Inks

1500 Series UV
Flexiform Screen Ink

1500 Series UV Flexiform Screen Ink is designed for three-dimensional vacuum or thermal forming on a wide variety of substrates. 1500 Series exhibits excellent adhesion, as well as superior flexibility for forming applications in point of purchase and specialty markets such as three-dimensional signs, game boards, beverage panels, recreational helmets and specialty displays.

Substrates:

Styrene, Polycarbonate, ABS, Acrylic, PETG, PVC.

End Uses:

Three-dimensional signs, game boards, beverage panels, recreational helmets and specialty items requiring vacuum, or thermal formed displays.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Pantone Matching System® Base Colors

Halftone Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Non-Standard Halftone Colors

Pantone® 871c - 877c
Non-Metallic Simulated Colors

Additives / Reducer

Cleaners

Color Card

The following is a list of screen printed samples available.

UV Curable Screen Ink: CARDUV
Special Effects Color Card: CARDSPL
Non-Metallic Pantone® Simulations sheet: LIT0121

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

PowerPrint® 1600 Series UV Screen Ink

The multi-purpose PowerPrint® 1600 Series UV Screen Ink meets the increased processing speeds of modern printing equipment, curing at lower levels of ultraviolet energy, thereby reducing energy costs and substrate heat exposure. PowerPrint® 1600 Series cures to a tough finish that is highly block resistant. It is engineered to be cost effective for indoor and outdoor retail displays. PowerPrint® 1600 Series includes both gloss and matte colors.

Substrates:

Styrenes, rigid vinyls, pressure sensitive vinyls, polycarbonates, some acrylics, coated papers, coated cardstocks and treated fluted polypropylenes (see Additives section)

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Medium Tack Rheology (MTR) Halftones - T7* Standard

Low Tack Rheology (LTR) Halftones - T7* Standard

Medium Tack Rheology (MTR) Halftones - Standard

* T7 Halftone Inks: are designed to print to the targeted values of the seven colors (CMYK & RGB) as stated in ISO 12647-2 specification for process color reproduction. These inks can meet the ISO targeted numbers and achieve a neutral 100x3 black when printed on a substrate with a white value similar to a #1 Grade Coated Paper.

Low Tack Rheology (LTR)
Halftones - Standard

Standard Printing Colors

Matte Standard Printing Colors

Pantone Matching System® Base Colors

Matte Pantone Matching System® Base Colors

(1600 continued)

Matte Halftones

Pantone® 871c - 877c
Non-Metallic Simulated Colors

Additives/Reducers

Cleaners

Color Card

The following is a list of screen printed samples available.

UV Curable Screen Ink: CARDUV
Special Effects Color Card: CARDSPL
Non-Metallic Pantone® Simulations sheet: LIT0121

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

PowerPrint® Plus 1800 UV Screen Ink

The multi-purpose PowerPrint® Plus 1800 Series UV Screen Ink has been formulated to meet the processing speeds of the most modern printing equipment including in-line presses, for a wide range of substrates including treated corrugated polypropylene. PowerPrint® Plus 1800 features include: fast curing, hard ink surface, and high block resistance.

Substrates:

Styrene, cardstock, coated paper, matte vinyl, rigid vinyl, top coated polyester, pressure sensitive vinyl, treated polyethylene banner, treated polypropylene banner, treated corrugated polypropylene and some high density polyethylene sheeting (not recommended for highly plasticized vinyl materials such as vinyl banner and static cling, and not recommended for container or nameplate applications). The surface tension for polyethylene and polypropylene substrates should be at or above 44 dynes/cm

End Uses:

Point-of-Purchase applications on a wide range of substrates for indoor and outdoor advertising.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

MTR T7 Standard/High Density
Halftone Colors (Medium Tack Rheology)

MTR Standard/High Density

Halftone Colors (Medium Tack Rheology)

LTR Standard/High Density
Halftone Colors (Low Tack Rheology)

Standard Printing Colors

Pantone Matching System® Base Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Pantone® 871c - 877c Non-Metallic Simulated Colors

Additives/Reducers

Cleaners

Color Card

The following is a list of screen printed samples available.

UV Curable Screen Ink: CARDUV
Special Effects Color Card: CARDSPL
Non-Metallic Pantone® Simulations sheet: LIT0121

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

PowerPrint® Banner 1900 UV Screen Ink

PowerPrint® Banner 1900 UV Screen Ink has been formulated to excel in performance for indoor and outdoor Point of Purchase display and banner printing. PowerPrint® Banner 1900 features: low UV output required for curing, good flexibility, and extremely high block resistance.

Substrates:

Vinyl banner, treated polyethylene banner, most static cling, pressure sensitive vinyl and styrene

The surface tension for polyethylene substrates should be at or above 44 dynes/cm

End Uses:

Indoor and outdoor banner and POP applications.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

MTR T7 Standard / Dense Halftone Colors (Medium Tack Rheology)

MTR Standard / Dense Halftone Colors

(Medium Tack Rheology)

Standard Printing Colors

Pantone Matching System®
Base Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Pantone® 871c - 877c
Non-Metallic Simulated Colors

Additives/Reducers

Clean-Up

Color Card

The following is a list of screen printed samples available.

UV Curable Screen Ink: CARDUV
Special Effects Color Card: CARDSPL

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

Economy 3600 Vinyl Banner UV Process Colors

The Economy 3600 Vinyl Banner Process Colors are UV screen inks specifically formulated for 4-color process printing of indoor and short term outdoor POP vinyl banner applications.

Substrates:

Vinyl banner

End Uses:

For indoor and short term outdoor POP vinyl banner applications.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard LTR Halftone Colors

Standard MTR Halftone Colors

Dense MTR Halftone Colors

Additives/Reducers

Cleaners

Color Card

The following is a list of screen printed samples available.

UV Curable Screen Ink: CARDUV

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

3800 Series UV Poly Banner Screen Ink

3800 Series Poly Banner Ink has been formulated specifically for indoor and outdoor treated polyethylene banner applications, where excellent adhesion and superior flexibility are required. Properly cured, this ink will resist blocking when stacked ink to ink.

Substrates:

Surface treated polyethylene banner film (45 dynes per cm or higher)

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Halftone Colors MTR Standard/Dense

Standard Printing Colors

Pantone Matching System® Base Colors

Pantone® 871c - 877c Non-Metallic Simulated Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Additives/Reducers

Cleaners

Color Card

The following is a list of screen printed samples available.

UV Curable Screen Ink: CARDUV

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

3900 Series UV Flexible Banner Screen Ink

3900 Series UV Flexible Banner Screen Ink has been formulated specifically for indoor and outdoor vinyl banner applications requiring an ink film flexible enough to accommodate folding, sewing, and grommeting, while being block resistant when banners are stacked ink to ink. This ink will work well for cling vinyl applications that require extreme flexibility and the intercoat adhesion properties necessary for printing double sided window decals. 3900 Series has been designed to adhere to highly plasticized vinyls.

Substrates:

Vinyl banner, static cling vinyl, low tack vinyl and other flexible vinyls

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Halftone Colors MTR Standard/Dense

Standard Printing Colors

Pantone Matching System® Base Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Pantone® 871c - 877c
Non-Metallic Simulated Colors

Additives/Reducers

Cleaners

Color Card

UV Curable Screen Ink: CARDUV

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

4000 Series UV Screen Ink

4000 Series UV Screen Ink is a unique multi-purpose graphic screen printing ink formulated to adhere to a wide range of substrates and provide the flexibility to be suitable for heat-bending, router cutting, and low draw thermoforming for the sign and graphics markets.

Substrates:

PETG, styrene, acrylic, polycarbonate, most rigid and flexible vinyl, static cling vinyl, some anodized metal, rigid and flexible treated polyethylene, rigid and flexible treated polypropylene, and treated fluted polypropylene.

Various Acrylic materials including: Arkema: Plexiglas® G, Plexiglas® MC, Plexiglas® MCS, Plexiglas® SG, Plexiglas® T Evonik Cyro: Acrylite® FF, Acrylite® SG, Acrylite® GP Plaskolite: Optix®, Optix® LD, Duraplex

Note: Acrylic recommendations are based on internal adhesion testing under the processing outlined in this technical data sheet. Nazdar does not have control over the substrate manufacturer's process tolerance, changes to formulation, aging of material, masking material, etc. It is recommended for the user to qualify adhesion and finishing processing prior to full production.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard/Dense MTR (Medium Tack Rheology) Halftone Colors

Standard Printing Colors

Standard Printing Colors

Pantone Matching System® Base Colors:

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Standard/Dense LTR (Low Tack Rheology) Halftone Colors

Pantone® 871c - 877c Metallic Simulated Colors

Additives/Reducer

Clean-Up

Color Card

UV Curable Screen Ink: CARDUV
Special Effects Color Card: CARDSPL

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

4200 Series UV Screen Ink

Nazdar's 4200 Series UV Screen Ink incorporates the newest formulation technology to optimize cure speed, adhesion range, ink film flexibility, print speed, and image quality. 4200 Series represents a breakthrough in providing a competitive, high quality ink that withstands some of the toughest finishing and shipping requirements in the graphics market.

Nazdar's 4200 Series UV Screen Ink has been formulated for indoor and short-term outdoor performance on a wide range of substrates including styrene, coated paper and corrugated polypropylene substrates.

Substrates:

Coated paper/board, styrene, treated fluted polypropylene, treated polyester, most rigid and flexible vinyl, static cling vinyl, most rigid and flexible treated polyethylene, most rigid and flexible treated polypropylene

Note: The surface tension for polyethylene and polypropylene substrates should be at or above 44 dynes/cm.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

MTR T7 Standard / Dense Halftone Colors (Medium Tack Rheology)

Eonomy MTR Standard / Dense Halftone Colors

Standard Printing Colors

Pantone Matching System® Base Colors

Economy Mixing Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, on-inventoried colors which may require additional lead time.

Standard Printing Colors

Low Tack Rheology (LTR) Halftones

Pantone® 871c - 877c
Non-Metallic Simulated Colors

Additives/Reducers

Cleaners

Color Card

UV Curable Screen Ink: CARDUV
Special Effects Color Card: CARDSPL

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

5500 Series Flat Poster Screen Ink

5500 Series Flat Poster Screen Ink is a flat finish solvent-based ink formulated for printing on paper and card stock. 5500 Series is cost-effective and for short term POP displays, posters, serigraphs applications.

Substrates:

Coated and uncoated paper and card stock.

End Uses:

Cost-effective, short term POP displays, posters, serigraphs.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Fluorescent Colors

Additives

Cleaners

Color Card

Refer to 5500 Series Online Color Chart
Special Effects Color Card: CARDSPL

Colors with an item number containing 'LF' indicate a lead-free alternative that replaced a leadcontaining color. All colors listed in this document are lead-free.

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

7200 Series Lacquer Screen Ink

7200 Series offers clean, bright colors for printing POP displays, signs and book covers. 7200 Series dries quickly once printed.

Substrates:

Coated paper and card stocks, polyolefins, some synthetic paper stocks, foils, wood, Tyvek® and some coated metals

End Uses:

POP displays, signs, and book covers.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Pantone Matching System® Base Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Standard Printing Colors:

Matching System Colors:

Additives/Thinners

Cleaners

Color Card

Color Card Conventional: CARD375
Special Effects Color Card: CARDSPL

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

7900 Series Corogloss Screen Ink

7900 Series Corogloss is a solvent-based screen ink formulated for transportation graphics, real estate signs, POP, and other outdoor signage applications.

Substrates:

Treated polypropylene and treated polypropylene corrugated plastic with substrates having a minimum surface treatment level of 45 dynes per cm.

End Uses:

Transportation graphics, real-estate, POP and other outdoor signage.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Single Pigment Toners

Pantone Matching System® Base Colors

Halftone Colors

Additives/Thinners

5560 Fast Thinner (not available in quarts)
9050 Retarder Thinner* (not available in quarts)

Cleaners

Color Card

Color Card Conventional: CARD375
Special Effects Color Card: CARDSPL

Colors with an item number containing ‘LF’ indicate a lead-free alternative that replaced a leadcontaining color. All colors listed in this document are lead-free.

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

9700 Series All Purpose Screen Ink

700 Series All Purpose Screen Ink is a high gloss, solvent-based screen ink formulated to perform on a wide variety of substrates, such as paper, card stock, polystyrene, vinyl, Tyvek®, coated polyester, rigid vinyl, acrylic and many synthetic paper stocks. 9700 Series is for indoor and outdoor POP advertising and display applications.

Substrates:

Styrene, coated paper and card stock, rigid vinyl, synthetic stocks and plastics

End Uses:

Indoor and outdoor POP advertising and display applications requiring two to three years durability.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Pantone Matching System® Base Colors

Halftone Colors

Transparents

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Additives/Extenders/Thinners

Cleaners

Color Card

Color Card Conventional: CARD375

Colors with an item number containing 'LF' indicate a lead-free alternative that replaced a lead-containing color. All colors listed in this document are lead-free.

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

4700 Series Water-Based Screen Ink

4700 Series Screen Ink is a water-based, multi-purpose graphic ink that produces a glossy ink film, offers good weather resistance and is flexible enough for shallow draw (2 to 4 inches) vacuum forming.

Substrates:

Coated paper, cardboard, pressure-sensitive vinyl, top-coated polyester, static-cling, polycarbonate, some coated metals and styrene

End Uses:

POP displays, Decal graphics, and Ad Specialty products

Product Range:

Nazdar manufactures the colors listed below in 1-kilogram containers. Some colors are available in gallon containers. See distributor for availability and container sizes of Additives/Reducers and Cleaners.

Standard Ink Items

Additives/Reducers

Cleaners

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

Decal Inks

3500 Series UV Durable Graphic Screen Ink

3500 Series UV Screen Ink has been formulated for use on premium pressure sensitive vinyl films intended for exterior applications. It exhibits superior flexibility and elongation, allowing for stretching the printed vinyl film over rivets for fleet graphic applications. The 3500 Series has excellent weatherability and chemical resistance, and may be used on decals that will be thermal diecut and pre-masked.

Substrates:

Premium pressure sensitive vinyls.

End Uses:

Highly flexible and durable pressure sensitive decals for Fleet and Original Equipment Manufacture (OEM).

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard MTR Halftone Colors

Standard Printing Colors

Blending Toners

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Pantone® 871c - 877c:

Reducer

RE305 UV Reducer

Cleaners

Color Card

Color Card 3500: CARD35

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

3600 Series UV Decal Screen Ink

3600 Series UV Screen Ink has been formulated for applications on pressure-sensitive decals requiring exceptional performance. 3600 UV Decal Series exhibits excellent exterior durability and chemical resistance. The inks will thermal die-cut and accept pre-mask.

Substrates:

Pressure-sensitive vinyls and print treated polyesters.

End Uses:

For most decal applications in the OEM, product identification, and consumer markets.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Pantone Matching System® Base Colors

Blending Toners

Dense LTR Halftone Colors

Standard MTR Halftone Colors

Dense MTR T7 Halftone Colors

T7 Halftone Inks: are designed to print to the targeted values of the seven colors (CMYK & RGB) as stated in ISO 12647-2 specification for process color reproduction. These inks can meet the ISO targeted numbers and achieve a neutral 100x3 black when printed on a substrate with a white value similar to a #1 Grade Coated Paper.

Pantone® 871c - 877c Metallic Simulated Colors

Additives/Reducers

Cleaners

Color Card

UV Color Card: CARDUV

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

GV Series Gloss Vinyl Screen Ink

GV Series Screen Ink has been formulated for printing on vinyl surfaces where a high gloss finish is required. These inks form a positive bond with most vinyl surfaces and will dry to an extremely flexible film which may be vacuum formed. The pigments used in these inks have been carefully selected for fade resistance under outdoor exposure.

Substrates:

Vinyls, polycarbonate, acrylic.

End Uses:

Nameplates, identification panels, vacuum formable with good exterior performance.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Metallic Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Additives/Thinners

Cleaners

Color Card

Color Card GV: CARDGV

Colors with an item number containing ‘LF’ indicate a lead-free alternative that replaced a lead containing color. All colors listed in this document are lead-free.

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

VF Series Flat Vinyl Screen Ink

VF Series inks are formulated to have excellent adhesion to both rigid and flexible vinyl's and some vinyl coated materials. The inks have excellent printability, opacity, fast drying and non - blocking characteristics. VF is recommended only for interior applications

All colors except VF111 Black may be heat sealed. VF121 Non Arcing Black is used for heat sealing.

Substrates:

Flexible vinyl and some vinyl coated materials.

End Uses:

Binders, shower curtains, vinyl banners and static cling vinyl.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Thinners/Additives/Extenders

Cleaners

Color Card

Refer to VF Series Online Color Chart

Colors with an item number containing ‘LF’ indicate a lead-free alternative that replaced a lead containing color. All colors listed in this document are lead-free.

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

S2 Series Systems-2 Gloss Vinyl Screen Ink

System-2 Series ink is a high gloss, solvent-based screen ink formulated for optimum performance on pressure-sensitive vinyls and top coated polyesters used for decal applications.

Substrates:

Pressure-sensitive vinyl and print-treated polyester.

End Uses:

Pressure-sensitive decals recommended for exterior exposure.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Halftone Colors

Non-Standard Printing Colors

Additives/Reducers

Cleaners

Color Card

Color Card Conventional: CARD375

Colors with an item number containing 'LF' indicate a lead-free alternative that replaced a lead containing color. All colors listed in this document are lead-free.

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

Metal Decorating Inks

59000 Series Enamel Plus Gloss Screen Ink

59000 Series Enamel Plus Gloss Screen Ink is a solvent-based enamel ink formulated to screen print on a wide range of hard-to-adhere-to surfaces such as glass, metal, wood and some plastics for outdoor signs and displays.

Substrates:

Glass, metal, wood and some hard plastics.

End Uses:

Outdoor signs and displays.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Halftone Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Printing Colors:

Transparent Colors:

Additives/Reducers

Cleaners

Color Card

Color Card 59000: CARD59

Colors with an item number containing 'LF' indicate a lead-free alternative that replaced a lead containing color. All colors listed in this document are lead-free.

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

8900 Series SuperSet Thermo-Set Screen Ink

8900 Series SuperSet Thermo-Set Screen Ink is a high solids, high gloss solvent-based screen ink. A single component, cross linked product, 8900 Series is formulated for printing on pre-coated metal surfaces. Properly cured, 8900 Series exhibits excellent resistance to many solvents, chemicals, humidity and abrasion. 8900 Series is designed to provide maximum flexibility and intercoat adhesion.

Substrates:

Pre-coated metal substrates; coatings include enamel, polyester, acrylic, vinyl and epoxy.

End Uses:

Exterior signage, nameplates and POP display advertising.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Non-Standard Printing Colors

Additives/Thinners

Cleaners

Colors with an item number containing 'LF' indicate a lead-free alternative that replaced a lead containing color. All colors listed in this document are lead-free.

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

Container Inks

2300 Series UV/UV-LED Screen Ink

The 2300 Series UV / UV-LED Screen Ink has been formulated to cure with UV-LED with peak wavelength emission of 395 nanometers and more traditional UV mercury vapor curing system. The ink is designed for printing on various glass and plastic bottles used in the packaging of cosmetics, household chemicals and other similar applications. The ink has been formulated to meet the processing requirements of the container printing industry, such as adhesion to commonly used plastics, opacity, resistance to commonly used chemicals, and speed of cure.

Primary Substrates:

Glass, Treated high density polyethylene (HDPE) and Polyethylene terephthalate (PET)

Additional Substrates

Treated low density polyethylene (LDPE), Treated polypropylene (PP)

The surface tension should be at or above 44 dynes/cm.

Substrate recommendations are based on commonly available materials intended for the ink's specific market when the inks are processed according to this technical data. While technical information and advice on the use of this product is provided in good faith, the User bears sole responsibility for selecting the appropriate product for their end-use requirements. Reference the 'Quality Statement' at the end of this document.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Pantone Matching System® Base Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Additives/Reducers

Clean-Up

Color Card

UV Color Card: CARDUV

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

4300 Series UV Container Screen Ink

4300 Series UV screen ink is designed for high speed printing of plastic containers. 4300 Series inks exhibit excellent adhesion, as well as superior resistance to water, solvents, chemicals and other products typically packaged in plastic containers.

Substrates

Core Substrates:

• HDPE: treated high density polyethylene
• LDPE: treated low density polyethylene
• PP: treated polypropylene

The surface tension should be at or above 44 dynes/cm.

Additional Substrates:

• PET
• PVC: vinyl
• Styrene
• PC: polycarbonate

Product Range:

Standard ink items listed below are inventoried in gallon containers. HB = heavy body

Standard Printing Colors

Pantone Matching System® Base Colors

Non-Standard Printing Colors

Additives/Reducers

Clean-Up

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

Versacon® Classic 5100 Series Container Screen Ink

Versacon® Classic 5100 Series Screen Ink is a solvent-based ink system for container printing and exhibits adhesion to various plastics, glass and some metals. The 5100 Series exhibits excellent resistance to a wide range of solvents and chemicals used in cosmetics, personal care and household cleaning applications. As a high gloss, fast drying, single part system, the 5100 Series exhibits good adhesion immediately upon drying, while final properties will be achieved in 5-7 days.

Substrates:

Treated polyethylene and polypropylene, glass and some metals

Note: Due to variations in the type and manufacture of plastics, glass and metals, pre-testing must be done prior to any production run. Adhesion to the substrate does not guarantee satisfactory results with other end-use specifications.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Pantone Matching System® Base Colors

Single Pigment Toners

Metallic Effect Colors Colors

Additives

Clean-Up

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

PA Series Poly-All Screen Ink

PA Series Poly-All Screen Ink has been designed specifically for screen printing on untreated polypropylene. Its unique formulation makes pretreatment such as flaming or surface coating unnecessary. Poly-All will perform satisfactorily on most polypropylene surface. However, since there is considerable variation in the formulation of substrate materials, the user must always pretest the specific substrate for adhesion and product resistance prior to a production run. PA Series inks exhibit a semi-gloss finish. When thoroughly dried, PA Series ink has very good flexibility and durability. Poly-All has proven successful in some pad printing applications.

Substrates:

Untreated polypropylene.

End Uses:

Containers, mugs, cups, specialty ad products.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Mixing Colors

Additives/Reducers

Cleaners

Color Card

Color Card Poly-All: CARDPA

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

Nameplate Inks

2400 Series UV-LED Screen Ink

The 2400 Series UV-LED Screen Ink has been formulated to cure with a LED curing system with wavelength emission of 395 nanometers and minimum wattage output of 4 watts. The ink is designed for second surface printing on polycarbonate and polyester used as membrane overlays where the lamination of pressure sensitive adhesive directly to the ink film may be necessary. The ink has been formulated to meet the processing requirements of membrane overlay applications such as compatibility with most acrylic adhesives, flexibility for embossing, opacity, ink to ink adhesion and speed of cure.

Substrates:

Polycarbonate and some top coated polyester
(UV ink receptive primer)

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

*These colors are not recommended in applications that require high heat during processing.

Standard Printing Colors

Pantone Matching System® Base Colors

Halogen-Free Colors (only in kilograms)

Additives/Reducers

Cleaners

Color Card

UV Color Card: CARDUV
Halogen-Free Color Presenter: CARDHF

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

3400 Series UV Nameplate Screen Ink

The 3400 Series Nameplate UV Screen Ink has been formulated to meet the processing requirements of the membrane overlay market; including compatibility with most standard transfer adhesives, flexibility, opacity, ink to ink adhesion, and speed of cure. The 3400 Series is designed for second surface printing on polycarbonate and polyester used as membrane overlays where the lamination of pressure sensitive adhesive directly to the ink film may be necessary.

The 3400 Series with the addition of 5% by weight NB80 UV Adhesion Promoter may also be printed over HP Indigo® digital offset prints.

Substrates:

Polycarbonate, some top coated polyester (UV ink receptive primer).

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Pantone Matching System® Base Colors

Toners

Halftone Colors

Clears for Selective Texturing**

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Printing Colors:

Halogen-Free Colors:

Pantone® 871c - 877c Metallic Simulated Colors

Additives/Reducers

Cleaners

Color Card

Color Card 3400: CARD34
NSC UV Air Texture Clears Color Card: LIT0217

*Not recommended for high heat processing.

** Refer to the Technical Data Sheet for detailed information on these inks. These clears are for first or top surface printing only.

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

NSC UV Crystal Clear Transparent Inks

NSC UV Crystal Clear Transparent Screen Ink has been formulated to print on polycarbonate and some pre-treated polyester substrates commonly used as membrane overlays. These inks exhibit excellent clarity with very little haze, making them ideal for use as transparent window colors.

NSC UV Crystal Clear Transparent inks may be printed top or sub surface.

Substrates:

Polycarbonate and some pre-treated polyester (UV ink receptive primer).

End Uses:

For first or second surface transparent windows on polycarbonate and some pretreated polyesters used as a membrane overlay.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Additives/Reducers

Cleaners

Color Card

Color Card NSC Crystal Clear: CARDCC

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

NSC40 UV Air Texture
Clear Fine Screen Ink

The NSC40 UV Air Texture Clear Fine Screen Ink is specifically designed to give a decorative texture effect on first surface polycarbonate used for membrane overlay applications. Texture may vary from fine to very fine depending on the screen mesh. Gloss may also vary depending on screen mesh and substrate.

Substrates:

Polycarbonate and some pre-treated polyester.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Additives/Reducers

Cleaners

Color Card

NSC UV Air Texture Clears Color Card: LIT0217

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

NSC41 UV Air Texture
Clear Screen Ink

NSC41 UV Air Texture Clear is specifically designed to give a decorative texture effect on first surface polycarbonate and some pre-treated polyester used for membrane overlay applications. Texture may vary from medium to very fine depending on the screen mesh. Gloss may also vary depending on screen mesh and substrate.

Substrates:

Polycarbonate and some pre-treated polyester.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Additives/Reducers

Cleaners

Color Card

NSC UV Air Texture Clears Color Card: LIT0217

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

NSC47, NSC48, NSC49, NSC50
UV Air Texture Screen Ink

UV Air Texture Screen Inks are designed to give a clear decorative texture effect on first surface polycarbonate and some pre-treated polyester, used for membrane overlay applications. Textures are available from very fine to very coarse (See Packaging).

NSC47, NSC48, NSC49 and NSC50 UV Air Texture screen inks may be inter-mixed with each other to achieve a desired texture. Mesh counts must be selected for the coarsest texture used in the mixture.

An inert (nitrogen) atmosphere curing unit is not necessary for all Nazdar texture clears designated as "UV Air Texture."

Substrates:

Polycarbonate and some pre-treated polyester

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Additives/Reducers

Cleaners

Color Card

NSC UV Air Texture Clears Color Card: LIT0217

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

NSC42C & NSC42F Nitrogen Texture Clear
UV Screen Ink

NSC42C Nitrogen TC Coarse and NSC42F Nitrogen TC Fine UV Screen Inks are specifically designed for use with germicidal lamps in an inert atmosphere to give a decorative textured effect on first surface polycarbonate for membrane overlay applications.

Substrates:

Polycarbonate

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Additives/Reducers

Cleaners

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

PSPC Series Nitrogen Texture Overprint Clear UV Screen Inks

PSPC Nitrogen Texture Overprint Clear UV Screen Inks have been specifically formulated for top or first surface printing on polycarbonate and some top coated or print treated polyester used in membrane overlay applications. These inks are not recommended for hard coated polycarbonate and polyester surfaces.

These inks will produce a variety of textures when cured in an inert atmosphere using a germicidal lamp. The appearance of the texture will depend on ink deposit, nitrogen flow and belt speed. Some of the inks may be mixed together to achieve different textures. Please refer to the chart on the last page to determine ink compatibility.

Properly cured, these inks will exhibit excellent adhesion as well as solvent, moisture and mar resistance.

Substrates:

Polycarbonate and some pre-treated or primed polyesters

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

* These clears contain N-vinyl-2-Pyrrolidone (NVP), trade name V-Pyrol®. These clears are intermixable with each other and with other PSPC clears.

Additives/Reducers

Cleaners

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

NSC240’s UV-LED
Air Texture Clear
Screen Ink Membrane
Overlay / Nameplate

UV-LED Air Texture Clear screen inks are specifically formulated to cure with 395nm, UV-LED curing systems and designed to give a decorative, first surface texture effect on polycarbonate and some pre-treated polyester films used for membrane overlay applications. Textures are available from fine to very coarse. These inks may be inter-mixed with each other to achieve a custom texture. An inert nitrogen atmosphere curing unit is not necessary for Nazdar UV-LED Air Texture Screen Inks.

Substrates:

Polycarbonate
Some Pre-Treated Polyesters
(Pre-test ink adhesion on hard coated films)

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Ink Items:

Additives/Reducers

Cleaners/Clean Up

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

NSC74, NSC75, NSC76, NSC77 Indigo® Overprint UV/UV-LED Screen Ink

NSC74, NSC75, NSC76, and NSC77 are 1-part screen printing inks are used to print over HP Indigo® digital offset prints to provide a backing color when viewed second surface or a protective clear surface when viewed first surface.

These screen inks can be cured using medium pressure mercury vapor UV curing lamps or 4+ watt, 395nm UV-LED curing lamps.

Substrates:

Pre-treated transparent polycarbonate, pre-treated polyester and pre-treated vinyl films.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Ink Items:

Non-Standard Ink Items:

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

NSC43 UV Lens Clear Screen Ink

NSC43 UV Lens Clear Screen Ink is specifically formulated to print over textured polycarbonate and polyesters used as membrane overlays to create a clear window.

NSC43 is designed for top or first surface printing and cures to a hard, mar-resistant finish.

Substrates:

Textured Polycarbonate and some polyesters

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Additives/Reducers

Cleaners

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

8800 Series Color-Vue Membrane Screen Ink

Color Vue 8800 Series Screen Inks have been formulated specifically for automotive, membrane overlay and appliance decorating applications, where strong transparent colors with lens-like clarity and high opacity colors are required. The 8800 Series is compatible with most acrylic transfer adhesives.

Substrates:

Polycarbonate and some print-treated polyester.

End Uses:

Backlit panels, nomenclature and instruction panels, membrane overlays.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors

Transparent Colors

Single Pigment Toners

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Pantone Matching System® Base Colors

Additives/Thinners

Cleaners

Color Card

Color Card Conventional: CARD375

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

60028546WB Waterbase Peelable Mask

60028546WB Waterbase Peelable Mask is a water-soluble, screen-printable clear for use as a temporary protective coating on polycarbonate and coated metal substrates. The dried coating can be easily peeled away from the substrate.

Substrates:

Polycarbonate and coated metal

Packaging

Nazdar manufactures this ink in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Product Range:

Contact your Nazdar distributor for product availability and offering.

Standard Printing Colors

Additives/Reducers

Cleaners

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

Industrial Inks

ADE Series Epoxy Screen Ink

ADE Epoxy Screen Ink has been formulated with high quality epoxy resins for excellent adhesion to metals, glass and a wide range of hard-to-print substrates. ADE Series is ideal for electronic and industrial applications and provides outstanding solvent, chemical and abrasion resistance.

ADE is a two-part ink and must be initiated with a catalyst prior to use. ADE ink exhibits a high gloss finish.

ADE Series is for indoor applications only.

Substrates:

Epoxy, melamine, treated polyethylene, treated polypropylene, metals, glass, PC boards.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

*These colors are not recommended for baking temperatures over 250°F (121°C). **One gallon minimum blend.

Standard Printing Colors

Mixing Colors

Pantone Matching System® Base Colors

Non-Standard Printing Colors

Non-Standard ink items listed below are special order, non-inventoried colors which may require additional lead time.

Halogen-Free Colors

Extenders/Additives/Reducer or Thinners

Cleaners

Color Card

Conventional Color Card: CARD375

Note: For a complete description of this ink series printing applications and parameters, please refer to the Technical Data Sheet available online at www.nazdar.com. Refer to page 14 of this catalog for Nazdar's Ink Usage Guidelines and heavy metals statement.

6100 Series Fast Dry Enamel Ink

6100 Series Fast Dry Enamel Screen Ink is a solvent-based ink developed for use on flame-treated polyethylene containers, fiber drums and other hard-to-adhere-to surfaces. 6100 Series has a built-in catalyst that accelerates curing and offers excellent resistance to soaps and detergents.

Substrates:

Fiber drums and treated polyethylene containers
Stainless steel (test first)

End Uses:

Containers and packaging materials.

Product Range:

Nazdar manufactures the colors listed below in gallon containers. See distributor for availability and container sizes of Additives/Reducers and cleaners.

Standard Printing Colors
